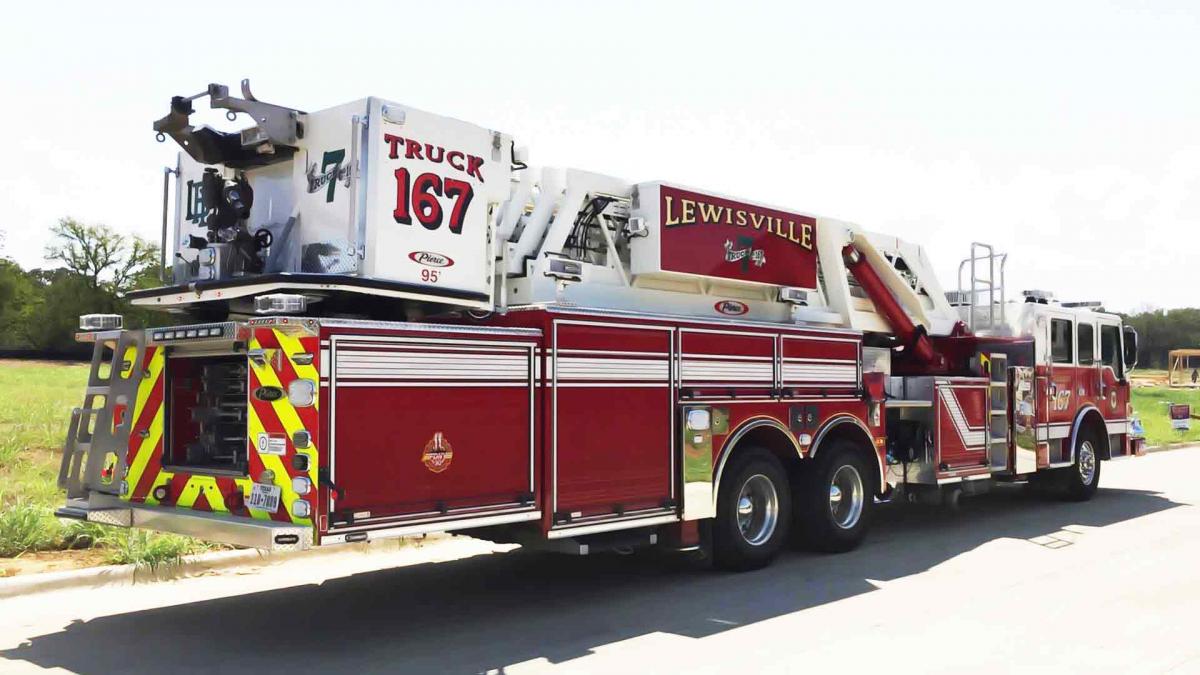

Mid-Mount
Platform
Fire Division Products
Specifications
Custom Chassis Choices
Arrow XT™, Quantum®, or Velocity®
Body Support Substructure
Pierce exclusive underslung steel body supports features a neoprene elastomer isolated mount system
Pump Range
Waterous or Hale
Wind & Ice Ratings
Up to 50 mph winds & 1/4″ of ice
Basket
16 or 22 sq ft
Ladder Reach
95′ vertical, 88′ horizontal
PUC Availability
No
Tank
Up to 300 gallons
Stabilizers
2 sets of H-style: front & rear
Flow Capacity
2000 gpm
Hosebed Capacity
1000′ of 5″ hose
Payload Capacity
Up to 1000 lb
Body Warranty
10 yr
Structural Ladder Warranty
20 yr
Videos
New Deliveries
Contact Fire Division
From pre-construction to delivery, our highly trained team of fire apparatus specialists will walk you through every-step to ensure your new apparatus is built from the ground up – just the way you want it. No one works more closely with their customers to configure each vehicle around their demands. Give us a call at 800-784-6806. Our dedicated sales and service team stand ready to assist you.
