Aluminum
Ladder
Pierce Mfg. Fire & Emergency Products

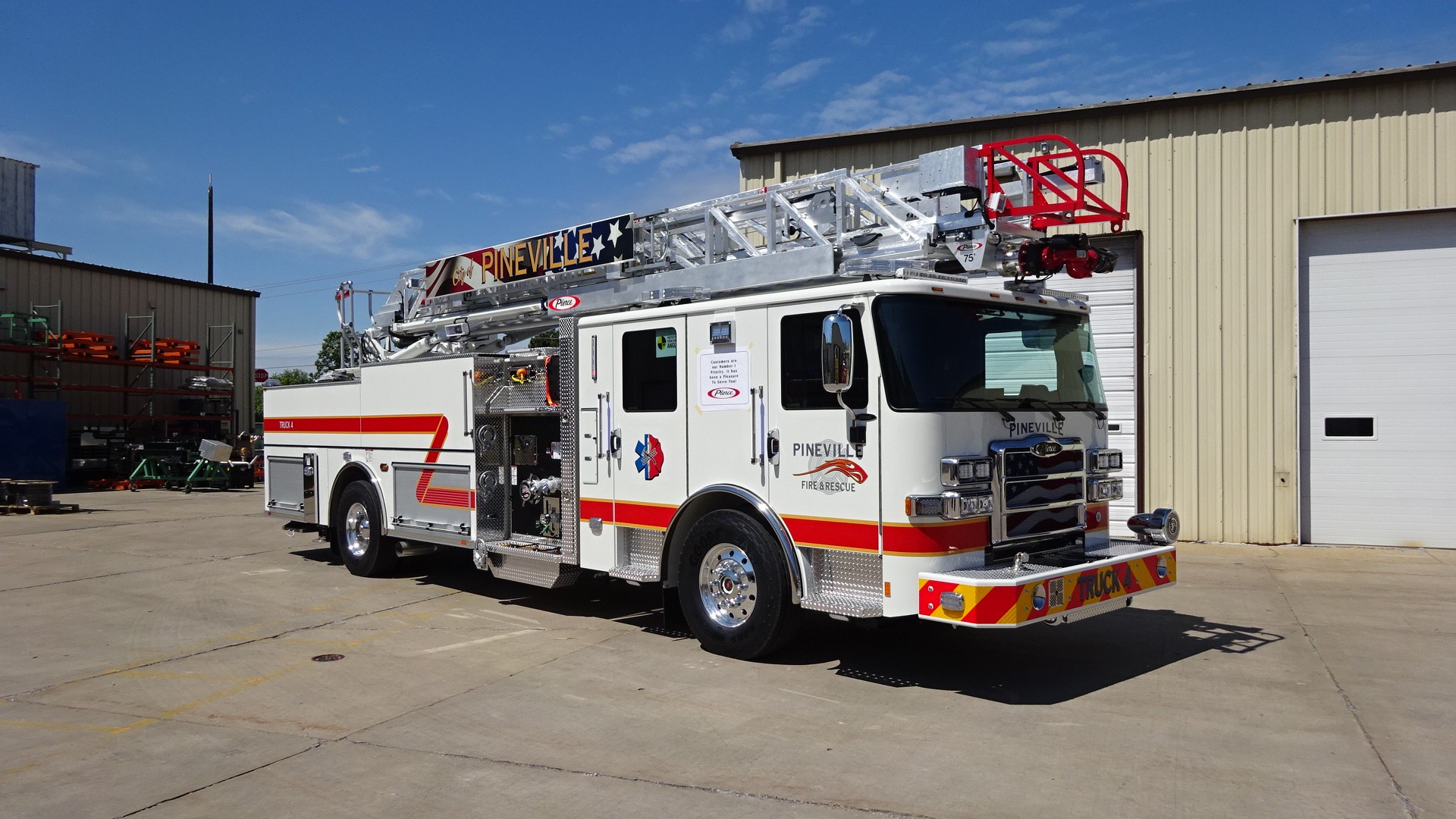

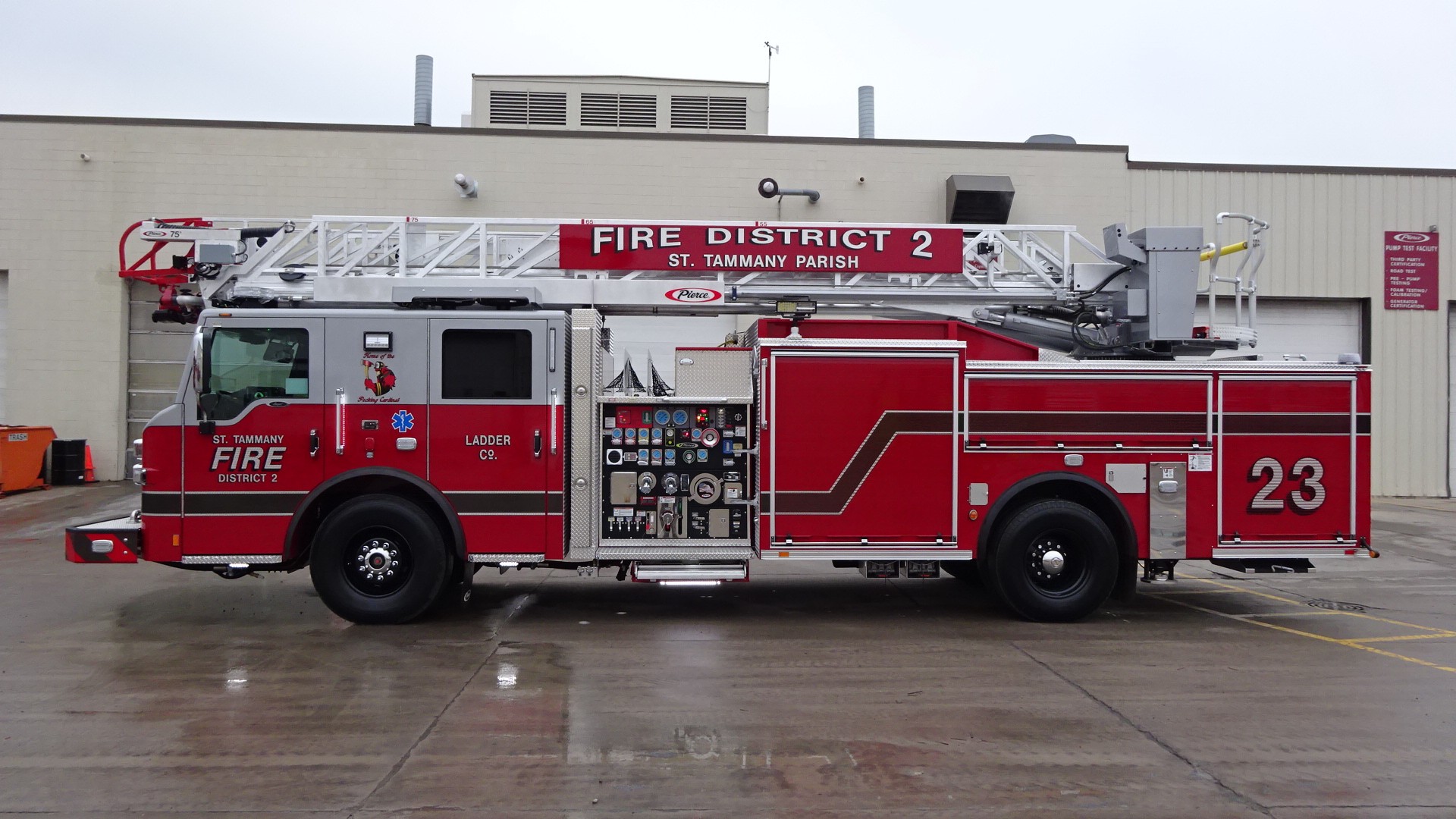

We deliver the highest distributed load ratings of any aluminum aerial in the industry. This 100’ Pierce Aluminum Aerial Ladder has the same capabilities as the 75′ aluminum ladder and comes equipped with a 12’ stabilizer spread and an industry-leading 750 lb. rated load capacity, dry. The ladder is aluminum. The thinking behind it is pure Pierce.
Custom Chassis Choices
Arrow XT™, Dash® CF, Enforcer™, Impel®, Quantum®, or Velocity®
Body Support Substructure
Pierce exclusive underslung steel body supports features a neoprene elastomer isolated mount system
Pump Range
Waterous, Hale, Darley Midship or PTO
Wind & Ice Ratings
Up to 35 mph winds & 1/4″ of ice
Variations
75′ vertical, 67’9″ horizontal
100′ vertical, 91’7″ horizontal
PUC Availability
Yes
Tank
Up to 750 gallons
Stabilizers
Up to 2 sets of H-style
Hosebed Capacity
1000′ of 5″ hose
Payload Capacity
Up to 750 lb
Flow Capacity
1500 gpm
Body Warranty
10 yr
Structural Ladder Warranty
20 yr
