Heavy Duty
Ladder

Specifications

The Pierce steel aerial ladder features a rated load capacity of up to 750 lbs. in winds up to 50 mph. This apparatus is engineered with a short spread of H-style stabilizers and an interlock system that prevents rotation of the ladder on the short-set side – just a few of the features that set this ladder apart. Available in 105′, 100′, and 75′ models.

Download

Brochure





Custom Chassis Choices

Arrow XT™, Dash® CF, Enforcer™, Impel®, Quantum® or Velocity®

Body Support Substructure

Pierce exclusive under­slung steel body supports features a neoprene elastomer isolated mount system

Pump Range

Waterous, Hale, Darley Midship or PTO

Wind & Ice Ratings

Up to 50 mph winds & 1/4″ of ice

Variations

75′ vertical, 69′ horizontal
100′ vertical, 94’1″ horizontal
105′ vertical, 100′ horizontal

PUC Availability

Yes

Tank

Up to 750 gallons

Stabilizers

Up to 2 sets of H-style

Hosebed Capacity

1000′ of 5″ hose

Payload Capacity

Up to 750 lb

Flow Capacity

1000 gpm

Body Warranty

10 yr

Structural Ladder Warranty

20 yr

Videos

Product Highlights

New Deliveries

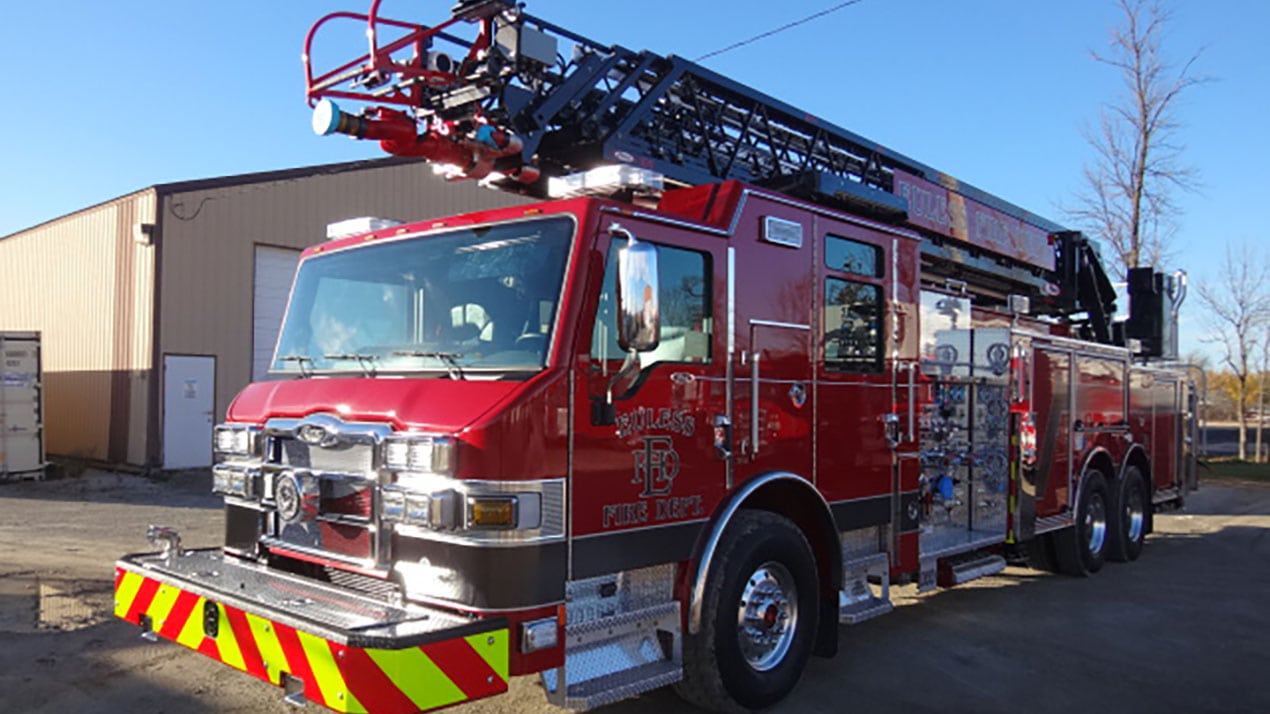

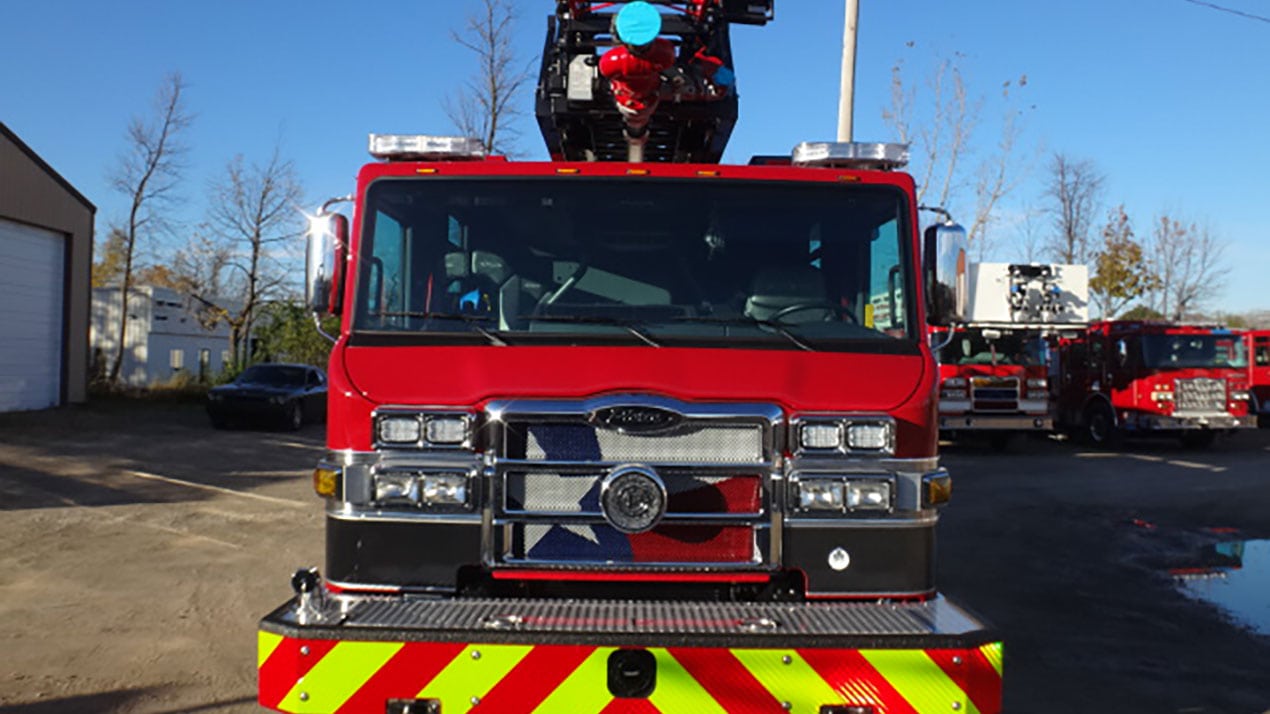

Euless, TX
